HongyubrandHYZ5070TXSisdesignedforthedevelopmentofhighways,urbanroads,squaresandairports.
Products use

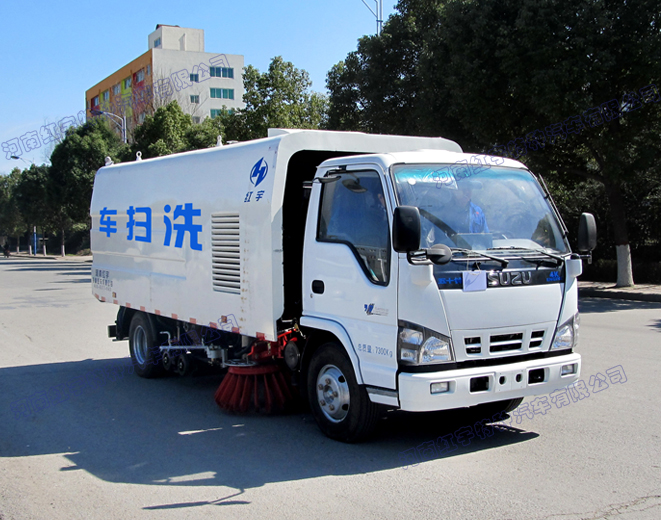

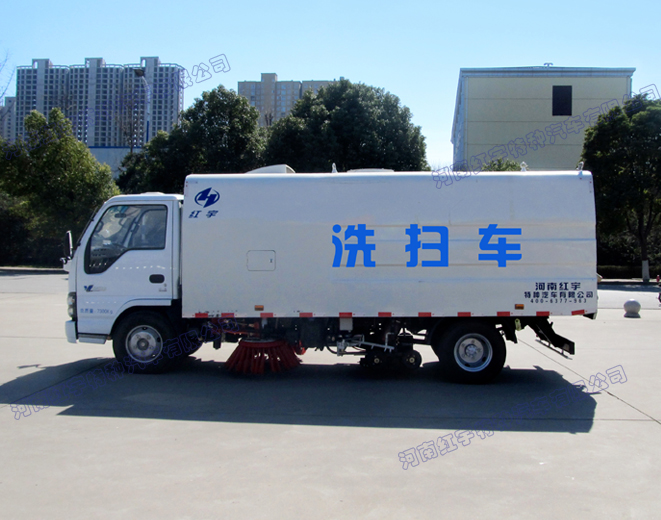

Hongyu brand HYZ5070TXS is designed for the development of highways, urban roads, squares and airports. The vehicle technology is leading, combined with the characteristics of traditional road sweeper and high-pressure cleaning vehicle, with road cleaning, road cleaning, low-pressure washing, sewage recovery and other functions. In addition to the installation of low - pressure pumps, like sprinkler can achieve low - pressure washing operations. This car is multi-purpose, can realize dry sweep, wet sweep, vacuuming, cleaning sweep, high-pressure cleaning and other operations mode.
Some products
The working device is arranged in the form of "middle two disc sweep + middle wide suction nozzle + built-in high-pressure main spray rod + left and right high-pressure side spray rod".
Clean water tank and dustbin are made of integral stainless steel, never corrode.
One-key operation intelligent electronic control system. When the operation starts and stops, the secondary engine speed control, suction nozzle lifting and lowering, sweeping plate retracting and releasing, left and right spray rod retracting and releasing and other operation devices are all controlled by one key, which is easy to operate and greatly reduces the possibility of wrong operation. There are several job modes to choose from. There are 6 operating modes in the system, including full wash, left wash, right wash, full wash, left wash and right wash. Users can choose the appropriate job mode according to the job requirements. After the operation mode is selected, press the button to start the operation, and all the institutions that need to participate in the operation will automatically extend and run the operation in the specified order. When it is necessary to stop the operation, the machine will shut down, and all the working machines will automatically stop in the specified order and recover to the original state.
PLC programming, intelligent control system, electrical, hydraulic and pneumatic control, the driver can complete a variety of actions in the cockpit operation.
Multiple automatic protection devices. This sweep to wash the car is equipped with fresh water shortage, the bin with water, prevent the bin open tilting before unloading, the deputy hair pneumatic clutch during operation joint separation play tooth poles did not back down, prevent protection has tilting the dustbin, prevent the automatic protection device, such as hydraulic oil leakage net protection sweep to wash the car in the event of water shortage, filled with water and other specific conditions and the wrong operation.
Technical reference number
| Vehicle type | HYZ5070TXS | The manufacturer | Henan hongyu special vehicle co. LTD |
| Chassis models | QL1070A5KAY | The manufacturer | Qingling automobile co. LTD |
| Engine type | 4KH1CN5HS/4KH1-TCG51 | Engine power (Kw) | 96/88 |
| Engine capacity | 2999/2999 | Engine manufacturer | Qingling isuzu (chongqing) engine co. LTD |
| Dimensions (length/width/height) | 6510×2070×2630 | Fuel type | diesel |
Total mass (Kg) | 7300 | Prepared mass (kg) | 5540 |
| Rated load weight (kg) | 1630 | Cleaning the speed | 4～20 |
| Maximum sweep width (m) | 3.0 | Maximum cleaning capacity (m2/h) | 5.6×104 |
Maximum suction size | 112 | Cleaning efficiency | 98.2 |
| Carriage effective volume (m3) | 8.5 | Maximum speed (km/h) | 110,105 |
| Number of tires | 6 | Tire size | 7.00R16 14PR |
| To form | The steering wheel | Emission basis standard | GB3847-2005，GB17691-2005國(guó)V |
