HongyuHYZ5180GSStypesprinklerissuitableforallkindsofroadsurfaceflushing,spraying,trees
Product overview

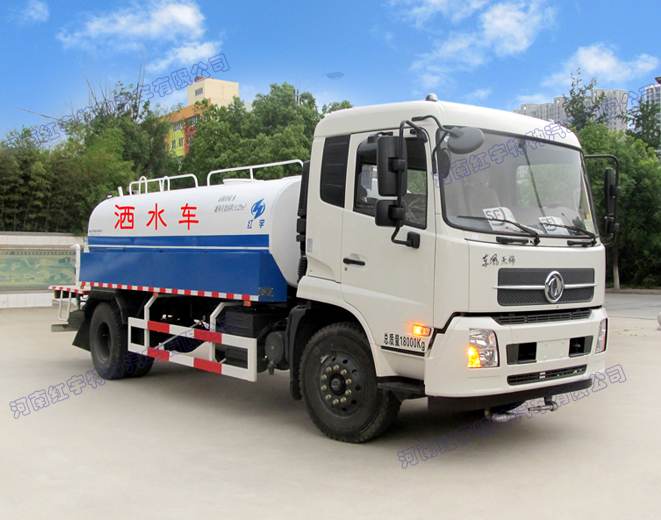

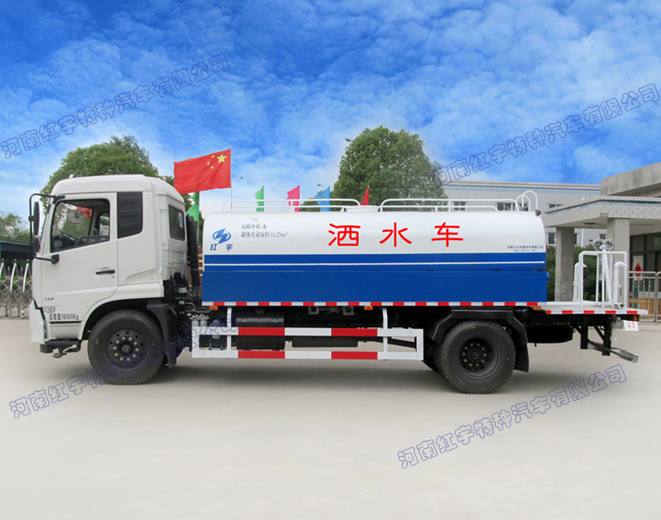

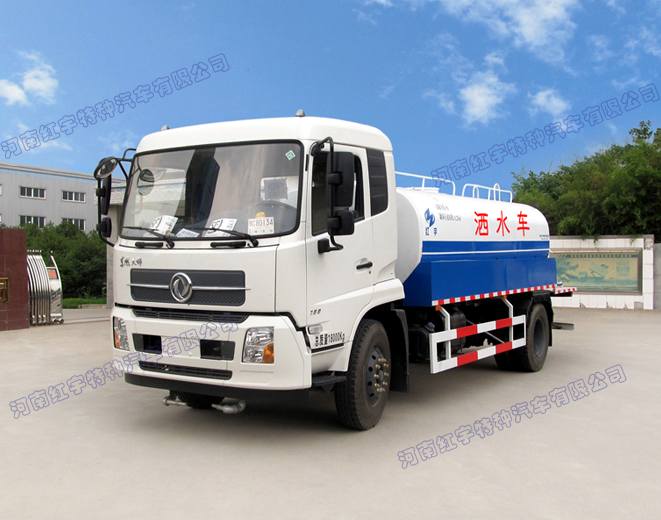

Hongyu HYZ5180GSS type sprinkler is suitable for all kinds of road surface flushing, spraying, trees, green belt, lawn greening, road, factories and mines construction construction, high-altitude building flushing.
It is composed of type ii chassis, anti-rust tank body, force extractor, transmission shaft, special self-priming sprinkler pump, pipe network, spraying outlet, working platform and other mechanisms. Also known as sprinkler, multi-functional sprinkler, landscaping sprinkler, water tanker, water tanker.
Product features
1, sprinkler head before the nozzle or duck nozzle, behind a cylindrical sprinkler nozzle or showerhead nozzle, generally used for washing street
The nozzle can change the spraying direction and Angle of the nozzle by adjusting the thread of the nozzle.
2. The vehicle is equipped with a lotus head on the side, which can spray and irrigate the road green belt or landscaping plants;
3, all sprinkler at the same time with water transport function, sprinkler pump can play a suction and pressure drainage function, can also be directly by the water tank drainage;
4, the company's production of sprinklers are green multi-functional vehicles, to meet the different requirements of different users. And can add all kinds of accessories,
Such as haze air cannon, pneumatic valves, GPS, universal nozzle, electromagnetic valves, visual operating system, external power, such as drug plate.
| Vehicle type | HYZ5180GSS | The manufacturer | Henan hongyu special vehicle co. LTD |
| Chassis models | DFH1180BX1V | The manufacturer | Dongfeng motor co. LTD |
| Engine type | ISB180 50 | Engine manufacturer | Dongfeng motor co. LTD |
| Engine capacity | 5900 | Engine power (Kw) | 132 |
| Dimensions (length/width/height) | 8500×2480×3050 | Fuel type | diesel |
| Total mass (Kg) | 18000 | Prepared mass (kg) | 7070 |
| Rated load weight (kg) | 10735 | Front suspension rear suspension (mm) | 1430/2370,1430/2570 |
| Axial load (kg) | 6500/11500 | Wheelbase (mm) | 4700,4500 |
| Maximum sprinkler width (m) | 16～18 | Tank effective volume (m3) | 11.27 |
| Bridge permitted load (persons) | 3 | Maximum speed (km/h) | 98 |
| Number of tires | 6 | Tire size | 10.00R20 18PR |
| To form | The steering wheel | Emission basis standard | GB3847-2005，GB17691-2005國(guó)V |
Product overview
Hongyu HYZ5180GSS type sprinkler is suitable for all kinds of road surface flushing, spraying, trees, green belt, lawn greening, road, factories and mines construction construction, high-altitude building flushing.
It is composed of type ii chassis, anti-rust tank body, force extractor, transmission shaft, special self-priming sprinkler pump, pipe network, spraying outlet, working platform and other mechanisms. Also known as sprinkler, multi-functional sprinkler, landscaping sprinkler, water tanker, water tanker.
Product features
1, sprinkler head before the nozzle or duck nozzle, behind a cylindrical sprinkler nozzle or showerhead nozzle, generally used for washing street
The nozzle can change the spraying direction and Angle of the nozzle by adjusting the thread of the nozzle.
2. The vehicle is equipped with a lotus head on the side, which can spray and irrigate the road green belt or landscaping plants;
3, all sprinkler at the same time with water transport function, sprinkler pump can play a suction and pressure drainage function, can also be directly by the water tank drainage;
4, the company's production of sprinklers are green multi-functional vehicles, to meet the different requirements of different users. And can add all kinds of accessories,
Such as haze air cannon, pneumatic valves, GPS, universal nozzle, electromagnetic valves, visual operating system, external power, such as drug plate.
| Vehicle type | HYZ5180GSS | The manufacturer | Henan hongyu special vehicle co. LTD |
| Chassis models | DFH1180BX1V | The manufacturer | Dongfeng motor co. LTD |
| Engine type | ISB180 50 | Engine manufacturer | Dongfeng motor co. LTD |
| Engine capacity | 5900 | Engine power (Kw) | 132 |
| Dimensions (length/width/height) | 8500×2480×3050 | Fuel type | diesel |
| Total mass (Kg) | 18000 | Prepared mass (kg) | 7070 |
| Rated load weight (kg) | 10735 | Front suspension rear suspension (mm) | 1430/2370,1430/2570 |
| Axial load (kg) | 6500/11500 | Wheelbase (mm) | 4700,4500 |
| Maximum sprinkler width (m) | 16～18 | Tank effective volume (m3) | 11.27 |
| Bridge permitted load (persons) | 3 | Maximum speed (km/h) | 98 |
| Number of tires | 6 | Tire size | 10.00R20 18PR |
| To form | The steering wheel | Emission basis standard | GB3847-2005，GB17691-2005國(guó)V |
